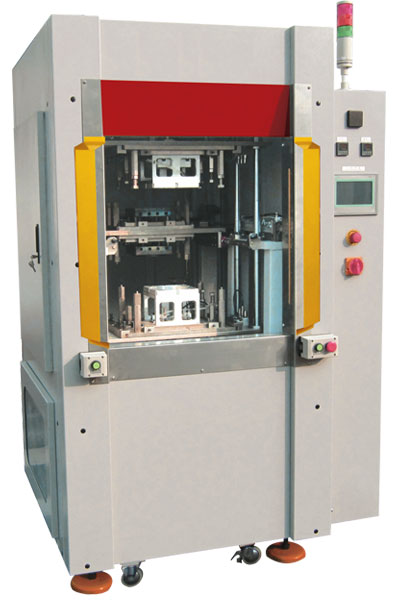

  • 001

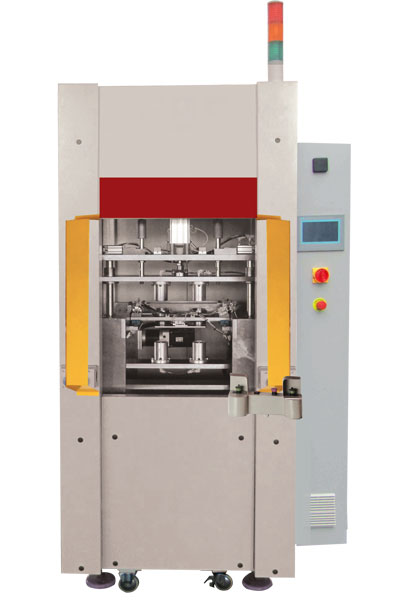

  • 002

Infrared Welding is the process of joining plastic components with the use of electric quartz glass infrared emitters. It is a complex assembly method that requires a delicate balance of machine capabilities such as accurately regulated parameters including time, temperature and tool positioning.

Infrared Heaters
infrared heater 001   infrared heater 002   infrared heater 003


Benefits Of InfraRed Heat Welding

  • No restriction on contour parting lines
  • Part mismatch not a concern as light can be adjusted to match the molding process
  • Parts are never physically touched by the heating elements, therefore sealing surfaces are always more consistent
  • Able to hold tighter part dimension tolerances
  • Lower injection tool costs due to joint design
  • Enables assembly of components inside housing prior to welding
  • Controlled infrared heat source, multiple temperatures on same fixture
  • Lower energy costs, Instant heat on / off
  • Set up and changeover tooling faster than hot plate welding
  • Proprietary IR source from Emitted Energy
  • Heating is precisely targeted to the components
  • No backup tooling required
  • No part sticking as this is a non-contact process
  • Hermetic sealing of the parts
  • Machines are capable of running multiple tools with quick changeover

Cost Advantages

  • Creates value for future designs by offering greater design flexibility
  • Reduce injection tooling costs
  • No cost to convert present design to IR welding
  • Improved part quality
  • Improves supplier ability to respond quickly tocustomer needs
  • Reduce overall costs on every program
  • Reduce energy costs significantly
